Equipment
Ph. 561-588-1001


Accessories
Brushes
Cutting Tools
Mixers & Mixing Containers
Safety Equipment
Equipment
Bristle Brushes
Roller Covers
Shears
Scissors
Pizza Cutters
Graduated Cups
Plastic Tubs
Measure-matic
Masks
Respirators
Gloves
Gelcoat Dump Gun
Chopper Guns
Fiberglass Rollers
Detail rollers, corner rollers, aluminum rollers, laminating rollers
Plastic Demolding Wedges
Plastic Wedges, Air Injection Wedges for helping release parts from molds

Gelcoat Spray Guns

[Enlarge Photo]

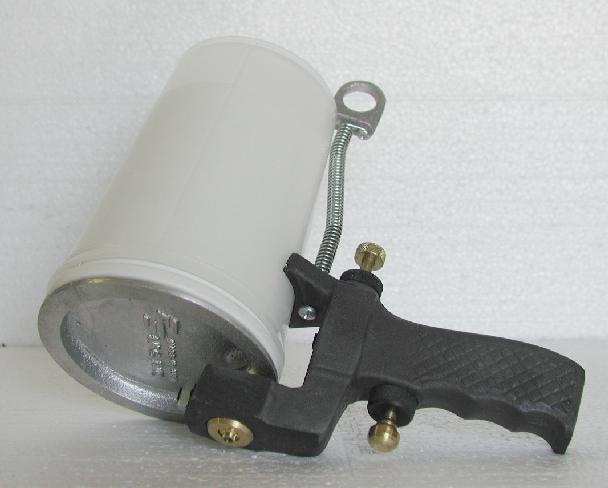

E&S Model 100 Gelcoat Dump/Spray Gun
Professional grade sprayer is a must for every fiberglass, composite and cultured marble shop. The easy to clean design means clean up times less than five minutes. Wipe the lid and nozzle, throw away the cup, and you're ready to go again. Nozzle sizes available seperately for other applications.

Comes with #6 Nozzle for gelcoat.
Uses one quart replaceable paper tubs.
Additional nozzles available separately.
Gun includes nozzle cleaning brush.
Standard air compressor requirements: 5.8CFM @ 80psi
Cat No.
Description
Price
ES-100
Gelcoat Dump Gun
$119.00
Disposable paper refill cups fit inside larger plastic cup shown in picture.
CON-GC01
Paper Refill Cups, Each
$.60/ Each
CON-GC25
Paper Refill Cups, Pack of 25
$12.00/Pack

[Enlarge Photo]

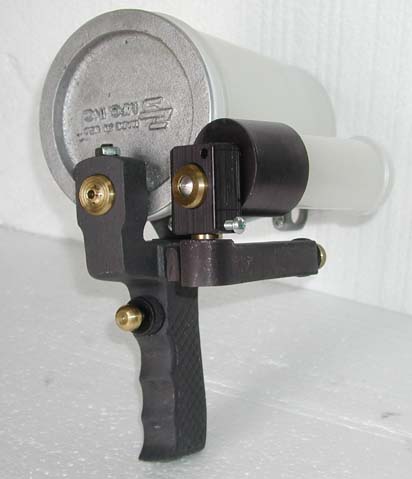

E&S Model 200 EXTERNAL MIX
Gelcoat Dump/Spray Gun

This professional grade sprayer works like the Model 100 but adds the convenience of external mixing. Adjustable spray angle to insure proper mix of catalyst with resin/gelcoat.

Comes with #6 Nozzle for gelcoat.
Uses one quart replaceable paper tubs.
Additional nozzles available separately.
Gun includes nozzle cleaning brush.
Standard air compressor requirements: 5.8CFM @ 80psi
Cat No.
Description
Price
ES-200
External Mix Dump Gun
$235.45
Disposable paper refill cups fit inside larger plastic cup shown in picture.
CON-GC01
Paper Refill Cups, Each
$.60/ Each
CON-GC25
Paper Refill Cups, Pack of 25
$12.00/Pack

Nozzles for ES-100 and ES-200
Spare nozzles for Model 100 and 200 spray guns for spraying various coatings.
Cat No.
Tip Size
Suggested Use
Price
ES-FN1
1/32"
Parting Films
$10.95
ES-FN2
1/16"
Parting Films
$10.95
ES-FN3
3/32"
Paints
$10.95
ES-FN4
1/8"
Resins **
$10.95
ES-FN5
5/32"
Resins and Gelcoats
$10.95
ES-FN6
3/16"
Gelcoats
$10.95
ES-FN7
7/32"
Gelcoats
$10.95
ES-FN8
1/4"
Gelcoats w/ Flake
$10.95
ES-FN9
9/32"
Sand Blasting
$10.95
**Note that resin nozzles will produce a fine spray of resin, not designed for mass output of resin to saturate fiberglass **

Other Accessories for ES-100 and ES-200

Cat No.
Description
Price
ES-FNBRUSH
Nozzle Cleaning Brush
$2.00
ES-G300011HD
Replacement Plastic Cup (holds the paper refill cups)
$2.50
ES-G300016
O-Ring Rebuild Kit for G100 (12-Orings)
$13.95
ES-G300009A
O-Ring for FN Fluid Nozzles
$1.50
ES-GG
Gelcoat Thickness Gauge
$3.50



Handheld Fiberglass Chopper Guns

[Enlarge Photo]

Gun Includes 1 extra anvil roller and total of 12 blades
Handheld Pneumatic Chopper Gun
Perfect for both large and small jobs.Air chopper can chop from 1/4" to 3" long strands simply by adding or subtracting blades. Safe and easy to operate, these choppers are also an excellent tool for field repairs.
Specs:
3.5 LB per minute output with 1" long strand.
Air Requirements: 3.5CFM @80 PSI
Cat No.
Description
Price
ES-CDA08
Air Powered Chopper
$269.00
Continuous Strand Gun Roving that is used by this chopper. Available Here.


Chopper Blades
Replacement parts for CDA08 and
CGA08 Chopper Gun

Most common items needing replacement
on the CDA08 & CDA08 chopper guns

Cat No.
Description
Price
ES-CA007PK
12 Pack of Chopper Blades(shown left)
$8.95
ES-CA011
White Anvil Roller Sleeve
$1.95
ES-CA006
Blade Retaining O-Ring
$1.95



Gear Reduced Fiberglass Chopper Gun



Gun Includes 1 extra anvil roller and total of 12 blades

CGA08 Gear-Reduced Pneumatic Chopper Gun

This handheld chopper gun has the same basic functionality as the CDA08 chopper gun, however this gun provides more control of volume output at slower speeds, allowing for slower chopping output.

Chop from 1/4" to 3" long strands simply by adding or subtracting blades.

Specs:
3.1 LB per minute output with 1" long strand.
Air Requirements: 3.5CFM @80 PSI
Cat No.
Description
Price
ES-08GRC
Gear Reduced Chopper
$395.00
Continuous Strand Gun Roving that is used by this chopper. Available Here.

Uses same replacement accessories as CDA08 chopper gun. (Parts shown above).

HVLP Gravity Feed Gelcoat Spray Guns

Full Size Style Gun

[Enlarge Photo]
Full Size

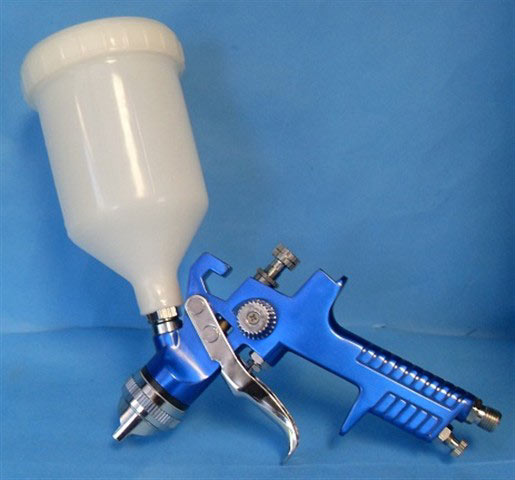

G860-2.5 HVLP Gun with 0.6 Liter Cup
(20 ounce)
This full size professional grade HVLP gun comes complete with a 2.5mm stainless nozzle, 0.6 liter plastic cup and plastic material strainer. There are separate adjustments for spray pattern width and material volume. The 2.5mm nozzle is perfect for gel coat and resin. This gun excels at large surface spraying, composite refinishing and large boat surface repair. Blue die cast body ensures long life. Our G860 can be cleaned in acetone without this problem. Our economical replacement parts make this a perfect addition to any composite shop.
Specs:
Fluid Nozzle Orfice: 2.5mm
Air Pressure Required: 40 to 80 psi
Air Connection: 1/4" NPT
Weight: 1.55 LBS
Cat No.
Description
Price
ES-G860-2.5
Full-Size G860-2.5 HVLP Gun
$95.00




Touch-Up Size Style Gun

[Enlarge Photo]
Touch Up Size Gun

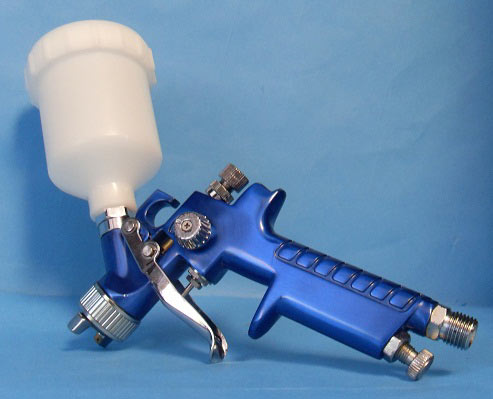

G830-2.0 HVLP Gun with 0.12 Liter Cup
(4ounce)
This professional grade TOUCH-UP SIZE gun comes complete with a 2.0mm stainless steel nozzle, 0.12 liter cup and plastic material strainer. There are separate adjustments for spray pattern width and material volume. The 2.0mm nozzle is perfect for gel coat and resin. This gun excels at surface touch-ups such as mold repair , composite refinish and delicate boat hull repair. Blue die cast body ensures long life. Our G830 can be cleaned in acetone without this problem. Our economical replacement parts make this a perfect addition to any composite shop.
Specs:
Fluid Nozzle Orfice: 2.0mm
Air Pressure Required: 30 to 80 psi
Air Connection: 1/4" NPT
Weight: 0.75 LBS
Cat No.
Description
Price
ES-G830-2.0
Touch-UP Size
G830-2.0 HVLP Gun
$69.00
