Specialty Fiberglass Fabrics
The following biaxial fabrics are compatible for use with polyester resins, epoxy resins and vinyl ester resin.
Call for pricing or information in full roll quantities.

Product Information For Purchasing

  • Minimum Order Quantity: ONE linear yard(3 Ft x width of fabric).
  • Quantity Price Breaks: Our cloths are sold by the linear yard with price breaks at 10 Yards, 25 Yards and Full Rolls.
  • Ordering: Online or by phone 561.588.1001

Heavy duty reinforcement common in marine construction. Used where high strength and fast build-up are necessary.

The mat in this fabric is stitched and fully compatible with polyester, vinyl ester and epoxy resins.
DBM 1708 Biaxial
+/- 45degree
Contains double bias(17oz) stitched at 45degrees
along with one layer of 3/4oz mat.
Thickness: 0.044"
Cat No.
Description
Price / Yard
FG-170838
38" Width
Same
1 to 9 Yd
$7.10
Same
10 to 24 Yd
$6.90
Same
25 or More Yd
$6.55
FG-170838R
Roll (90-95yd)
$471.00/ Roll

Full rolls are sold by weight and are approx. 150 LBS

Cat No.
Description
Price / Yard
FG-170850
50" Width
Same
1 to 9 Yd
$9.20
Same
10 to 24 Yd
$8.95
Same
25 or More Yd
$8.50
FG-170850R
Roll (90-95yd)
$608.00/roll

Full rolls are sold by weight and are approx. 190 LBS


Heavy duty reinforcement common in marine construction. Used where high strength and fast build-up are necessary. Lighter weight but better formability than 1708 biaxial.

The mat in this fabric is stitched and fully compatible with polyester, vinyl ester and epoxy resins.
DBM 1208 Biaxial
+/- 45degree
Contains double bias(12oz) stitched at 45degrees
along with one layer of 3/4oz mat.
Thickness: 0.037"
Cat No.
Description
Price / Yard
FG-120850
50" Width
Same
1 to 9 Yd
$8.75
Same
10 to 24 Yd
$8.25
Same
25 or More Yd
$7.90
FG-120850R
Roll (110yd)
$735.00/roll

Full rolls are sold by weight and are approx 190 LBS


Two layers of stitched biax at a 0/90 orientation with a layer of 3/4oz mat stitched to the back.

The mat in this fabric is stitched and fully compatible with polyester, vinyl ester and epoxy resins.
1808 Biaxial
+/- 90 degree
Contains double bias(18oz) stitched at 90degrees
along with one layer of 3/4oz mat.
Thickness: 0.048"
Cat No.
Description
Price / Yard
FG-180850
50" Width
Same
1 to 9 Yd
$7.60
Same
10 to 24 Yd
$7.30
Same
25 or More Yd
$7.00
FG-180850R
Roll (75-80yd)
$469.00/roll

Full rolls are sold by weight and are approx. 172 LBS


Same fabric as the 1708 biaxial shown above but available in precut strips of 6" and 12" widths.

The mat in this fabric is stitched and fully compatible with polyester, vinyl ester and epoxy resins.
DBM 1708 Biaxial TAPES
+/- 45degree
Contains double bias(17oz) stitched at 45degrees
along with one layer of 3/4oz mat.
Thickness: 0.044"
Cat No.
Description
Price
6" Width
FG-170806Y
Per Yard
$1.55/Yard
FG-170806T
25 Yard Roll
$33.00
FG-170806RL
Roll (95yd) appx. 25 lbs.
$97.00
Cat No.
Description
Price
12" Width
FG-170812Y
Per Yard
$2.95/Yard
FG-170812T
25 Yard Roll
$60.75
FG-170812R
Roll (95yd) appx. 46 lbs.
$175.00

Heavy duty reinforcement (17ounces per square yard) used in applications where a fiberglass MAT backing is not desired.
DB170 - 17oz Biaxial - NO MAT
+/- 45 degree
Contains double bias(17oz) stitched at 45degrees.
Does not have a mat backing.
Thickness: 0.030"
Cat No.
Description
Price / Yard
FG-DB170-50
50" Width
Same
1 to 9 Yd
$7.95 / yd
Same
10 to 24 Yd
$7.50 / yd
Same
25 or More Yd
$7.15 / yd
FG-DB170R
Roll (100yd)
$535.00

Full rolls are sold by weight and are approx. 150 LBS




[Enlarge Photo]


[Enlarge Photo]


[Enlarge Photo]

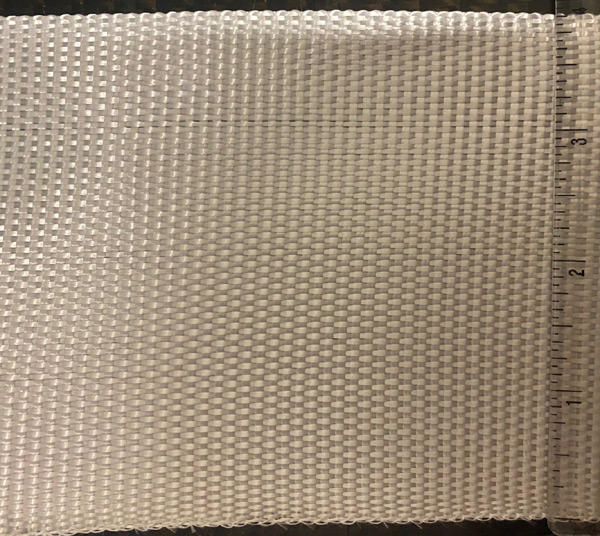

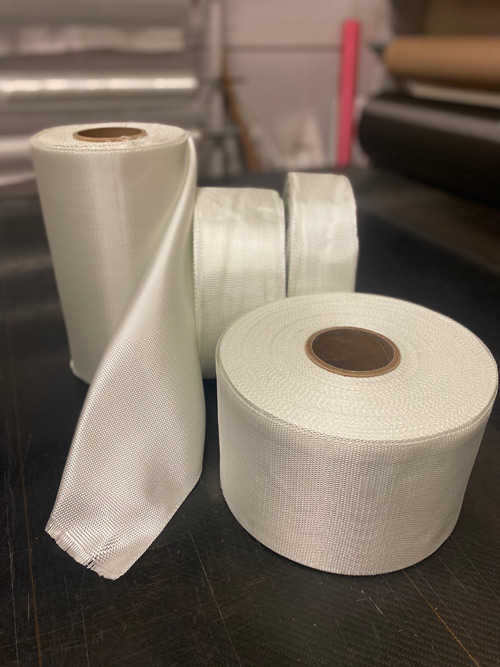

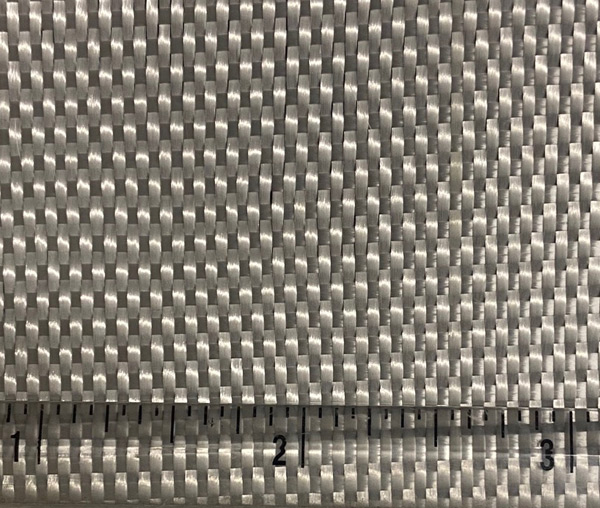

Warp/Uni-Directional
Fiberglass Tape

Available in: 3", 4", 6", and 12" Widths
12 ounce per square yard

This woven warp/uni-directional fiberglass tape provides 75% e-glass strands in the warp(0 degree) direction of the tape and 25% e-glass strands in the fill(90 degree). . Used in many wrapping applications and also in areas where strength and stiffness is required primarily in the "warp"(length) direction of the tape.
Can be used with epoxy, polyester and vinyl ester resins
Thickness: 0.018"

Cat No.
Description
Price / Yard
3" Width
FG-W12703Y
Per Yard
$1.35 / yd
FG-W12703-T
25 Yard Roll
$26.50 / Roll
FG-W12703-RL
153 Yard Roll
$124.50 / Roll

Resin usage: Approx 1 Pint Resin to 12 yards of Tape


Cat No.
Description
Price / Yard
4" Width
FG-W12704Y
Per Yard
$1.50 / yd
FG-W12704-T
25 Yard Roll
$33.75 / Roll
FG-W12704-RL
153 Yard Roll
$162.50 / Roll

Resin usage: Approx 1 Pint Resin to 10 yards of Tape


Cat No.
Description
Price / Yard
6" Width
FG-W12706Y
Per Yard
$2.10 / yd
FG-W12706-T
25 Yard Roll
$47.75 / Roll
FG-W12706-RL
153 Yard Roll
$244.50 / Roll

Resin usage: Approx 1 Pint Resin to 6 yards of Tape


Cat No.
Description
Price / Yard
12" Width
FG-W12712Y
Per Yard
$3.95 / yd
FG-W12712-T
25 Yard Roll
$89.50 / Roll
FG-W12712-RL
103 Yard Roll
$336.50 / Roll

Resin usage: Approx 1 Pint Resin to 3 yards of Tape



18oz Woven Roving
Coarsely woven fiberglass roving used for fast buildup in applications where cost savings are a factor. Best in flat or only gently contoured surfaces.
Cat No.
Description
Price / Yard
FG-ROV1838
38" Width
Same
1 to 9 Yd
$4.05
Same
10 to 24 Yd
$3.85
Same
25 or More Yd
$3.65
FG-ROV1838R
Roll (125-135yd)
$2.15/ Pound

Full rolls are sold by weight and can vary from 150 to 160 LBs.

Cat No.
Description
Price / Yard
FG-ROV1850
50" Width
Same
1 to 9 Yd
$5.25
Same
10 to 24 Yd
$4.95
Same
25 or More Yd
$4.65
FG-ROV1850R
Roll (125-135yd)
$2.15/ Pound

Full rolls are sold by weight and can vary from 195 to 205 LBs.


24oz Woven Roving
(Full rolls only - 52yd rolls)
Coarsely woven fiberglass roving used for fast buildup in applications where cost savings are a factor. Best in flat or only gently contoured surfaces.
Cat No.
Description
Price / Roll
FG-ROV2450RLL
50" Width
Same
52 YARD ROLL
$235.00

Full rolls are 110 LB net weight and approx 52 yards in length


Gun Roving
Continuous strand roving used mostly with chopper guns
which cut the fibers into small pieces for application.
Cat No.
Description
Price / Box
FG-GR37
39.5 LB Box
$89.50
Surfacing Veil
10MIL Thickness - 38" width
Used to prevent print through on mold surfaces
or in parts. Held together with binder which dissolves
in polyesters resins.
Cat No.
Description
Price / Yard
FG-V1038
38" Width
$1.95
FG-V1038-RLL
Roll (110yd)
$144.50/roll

2MM Coremat
4MM Coremat
Coremat ®
Coremat ® is a microsphere filled, random laid, chopped fiber polyester fabric with good conformability, that is used as a laminate bulking and print-control mat. Ideal for adding stiffness to laminates and molds.
Version: COREMAT XI

Available in 2 MM or 4 MM thicknesses.
Both sold in 39.37" width
Cat No.
Description
Price / Yard
FG-CM0239
2 Millimeter Thick
$7.15
FG-CM0239-RLL
Roll (861sq ft- 87yds))
$440.00

FG-CM0439
4 Millimeter Thick
$11.75
FG-CM0439-RLL
Roll (430sq ft - 43yds)
$450.00
