1. All wide width hybrid fabrics come rolled on a hard cardboard tube for safety.
2. All of our carbon is sold as a dry woven fabric.
We do not carry any pre-pregnated material nor any fabricated sheets or tubes.
3. All prices shown are in US$
4. All cut yardage prices are as you see them, no extra charges.

Cutting Info
Fabrics containing KEVLAR® can be very difficult to cut.
KEVLAR® shears should be considered when doing large amounts of work. Using very sharp regular scissors will cut slowly.

Fabric Info:
Please note that when resins are applied to these fabrics it will typically slightly darken the appearance of the colors as shown in our pictures. We recommend using the clearest resins possible for appearance purposes. For clarity the
Silmar 249 Polyester would be our choice, for best strength we would suggest our # 635 epoxy resin system.


SPECTRA / CARBON Hybrid Fabric
Fabric containing both carbon fiber and Spectra in one woven fabric.

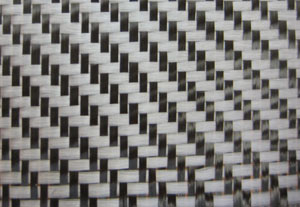

6oz '1st Quality' Carbon / Spectra Hybrid Fabric
Spectra appears a white platinum color when dry, however it turns translucent when saturated with resin. You will be able to see light/color through the Spectra yarns, so it will appear somewhat holographic depending on the background color
.


[Enlarge Photo]
Weight: 6osy
Weave: 2x2 Twill
Tow Size: 3K Carbon x Spectra
Thickness: .013"

White(translucent)/Black
-As of December 2019: Out of Stock -

Available in 50" Width
Unique fabric combining 3K-Carbon(Warp Direction) and
Spectra(Fill Direction) yarns into a 2x2 twill weave fabric
Cat No.
Description
Price
FG-X6050
6z x 50" Width
(out of stock)
Same
5+ Yards
(out of stock)
Same
10+ Yards
(out of stock)
Same
20 or more Yards
(out of stock)
Same
Full Roll (100yd)
(out of stock)

Notes about Spectra
Spectra provides the highest impact strength available in a composite fabric and must be cut with special scissors(
scissors available here). Using a hybrid carbon/spectra can provide improved impact resistance and strength over a carbon/KEVLAR® hybrid.


Hybrid Fabrics
Fabrics containing both carbon fiber and KEVLAR® in one woven fabric.

5.5oz 1st Quality Carbon/KEVLAR® Hybrid [BLACK/YELLOW]

[Enlarge Photo]
Weight: 5.5osy
Weave: 2 x 2 Twill
Tow Size: 3K x 1500 KEVLAR®
Thickness: .009"

2x2 Twill Weave. Drapes easily. Combines high strength and durability of both fabrics. Used commonly for cosmetic parts.


Yellow/Black
- IN STOCK -

BLACK & YELLOW
50" Width

Cat No.
Description
Price
FG-CK99050
5.5oz x 50" Width
$38.50/ Yard
Same
5+ Yards
34.50/ Yard
Same
10+ Yards
32.50/ Yard
Same
20 or more Yards
30.50/ Yard
Same
Full Roll (100yd)
Call for availability

(Must be cut with Kevlar scissors)
5.5oz 1st Quality Carbon/KEVLAR® Hybrid [BLACK/BLUE]

[Enlarge Photo]
Weight: 5.5osy
Weave: 2 x 2 Twill
Tow Size: 3K x 1500 KEVLAR®
Thickness: .009"

2x2 Twill Weave. Drapes easily. Combines high strength and durability of both fabrics. Used commonly for cosmetic parts.

Blue/Black
- IN STOCK -

BLACK & BLUE
50" Width

Cat No.
Description
Price
FG-CK99150
5.5oz x 50" Width
$38.50/ Yard
Same
5+ Yards
34.50/ Yard
Same
10+ Yards
32.50/ Yard
Same
20 or more Yards
30.50/ Yard
Same
Full Roll (100yd)
Call for availability

(Must be cut with KEVLAR® scissors)
5.5oz 1st Quality Carbon/KEVLAR® Hybrid [BLACK/RED]

[Enlarge Photo]
Weight: 5.5osy
Weave: 2 x 2 Twill
Tow Size: 3K x 1500 KEVLAR®
Thickness: .009"

2x2 Twill Weave. Drapes easily. Combines high strength and durability of both fabrics. Used commonly for cosmetic parts.

Red/Black
- IN STOCK -

BLACK & RED
50" Width

Cat No.
Description
Price
FG-CK99250
5.5oz x 50" Width
$38.50/ Yard
Same
5+ Yards
34.50/ Yard
Same
10+ Yards
32.50/ Yard
Same
20 or more Yards
30.50/ Yard
Same
Full Roll (100yd)
Call for availability

(Must be cut with KEVLAR® scissors)
5.5oz 1st Quality Carbon/KEVLAR® Hybrid [BLACK/GREEN]

[Enlarge Photo]
Weight: 5.5osy
Weave: 2 x 2 Twill
Tow Size: 3K x 1500 KEVLAR®
Thickness: .009"

2x2 Twill Weave. Drapes easily. Combines high strength and durability of both fabrics. Used commonly for cosmetic parts.

Green/Black
- Currently OUT OF STOCK -

BLACK & GREEN (DARK GREEN)
50" Width

Cat No.
Description
Price
FG-CK99350
5.5oz x 50" Width
(out of stock)
Same
5+ Yards
(out of stock)
Same
10+ Yards
(out of stock)
Same
20 or more Yards
(out of stock)
Same
Full Roll (100yd)
(out of stock)
5.5oz 1st Quality Carbon/KEVLAR® Hybrid [BLACK/ORANGE]

[Enlarge Photo]
Weight: 5.5osy
Weave: 2 x 2 Twill
Tow Size: 3K x 1500 KEVLAR®
Thickness: .009"

2x2 Twill Weave. Drapes easily. Combines high strength and durability of both fabrics. Used commonly for cosmetic parts.

Orange/Black
- IN STOCK -

BLACK & ORANGE (International Orange)
50" Width

Cat No.
Description
Price
FG-CK99450
5.5oz x 50" Width
$38.50/ Yard
Same
5+ Yards
34.50/ Yard
Same
10+ Yards
32.50/ Yard
Same
20 or more Yards
30.50/ Yard
Same
Full Roll (100yd)
Call for availability

(Must be cut with KEVLAR® scissors)

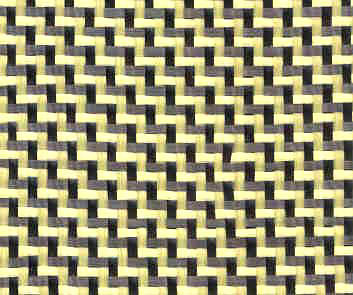

5.8oz 1st Quality Carbon/KEVLAR® Hybrid [BLACK/YELLOW] DUAL TWILL

[Enlarge Photo]
Weight: 5.8osy
Weave: 2 x 2 Twill
Tow Size: 3K x 1420 KEVLAR®
Thickness: .011"

2x2 Dual Twill Weave. Drapes easily. Combines high strength and durability of both fabrics. Used commonly for cosmetic parts.


Yellow/Black
- IN STOCK -

BLACK & YELLOW Dual Twill
50" Width

Cat No.
Description
Price
FG-CK220-50
5.8oz x 50" Width
$39.50/ Yard
Same
5+ Yards
35.50/ Yard
Same
10+ Yards
33.50/ Yard
Same
20 or more Yards
31.50/ Yard
Same
Full Roll (100yd)
Call for availability

(Must be cut with KEVLAR® scissors)

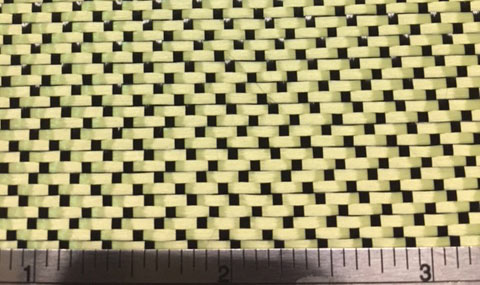

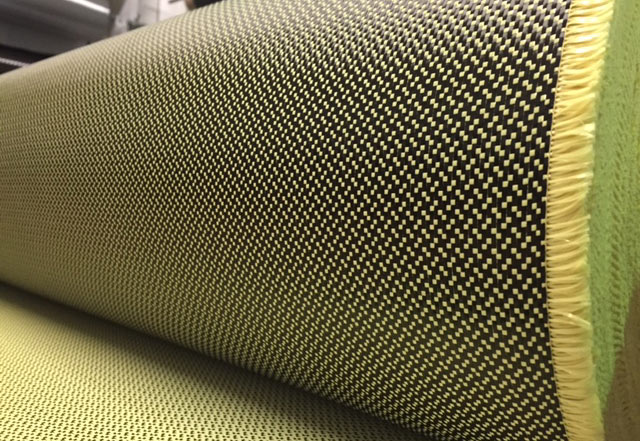

7.7oz 1st Quality Carbon/Aramid Hybrid [BLACK/YELLOW] Satin Weave

This style of weave allows one side to appear mostly black and the other side appears mostly yellow.
[Enlarge Photo]

[Enlarge Photo]

Weight: 7.7osy
Weave: 4 Harness Satin
Tow Size: 3K x 1500 Aramid
Thickness: .013"
Thread Count: 18x18 per inch

This heavier hybrid cloth drapes easily over average shapes and provides a unqiue speckled-like pattern. The 3K carbon runs in the warp(length of roll) and the Aramid is the fill(side to side threads). Combines the high strength and durability of both fabrics. Good buildup and conformability.


Yellow/Black
- OUT OF STOCK -

BLACK & YELLOW Satin Weave
50" Width

Cat No.
Description
Price
FG-CKH7750
7.7oz x 50" Width
$32.50/ Yard
- Out of Stock -
Same
5+ Yards
$29.50/ Yard
- Out of Stock -
Same
10+ Yards
$27.50/ Yard
- Out of Stock -
Same
20 or more Yards
$25.50/ Yard
- Out of Stock -
Same
Full Roll (100yd)
Call for availability
- Out of Stock -

(Must be cut with KEVLAR® scissors)


[Enlarge Photo]

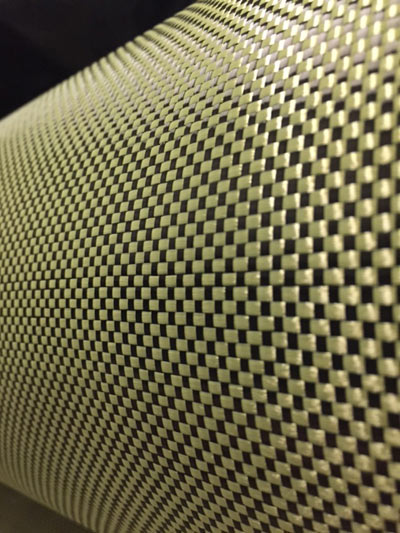

4.8oz '1st Quality' Carbon / KEVLAR® Hybrid Fabric

[Enlarge Photo]

Weight: 4.8osy
Weave: Plain
Tow Size: 3K Carbon x 1140 KEVLAR®
Thickness: .010"
[Enlarge Photo]

Yellow/Black
- IN STOCK -

Available in 50" Width
Unique fabric combining 3K-Carbon(Warp Direction) and KEVLAR® (Fill Direction) yarns into a plain weave fabric
Cat No.
Description
Price
FG-CK4850
4.8oz x 50" Width
$38.50/ Yard
Same
5+ Yards
34.50/ Yard
Same
10+ Yards
32.50/ Yard
Same
20 or more Yards
30.50/ Yard
Same
Full Roll (100yd)
Call for availability

(Must be cut with KEVLAR® scissors)

Hybrid Fabric Tapes
Fabrics with widths from 2" to 6"
Description of woven tapes: These products are referred to as tapes only due to
their narrow widths (2inch 4inch 6inch, etc.). These products do not have any adhesive backing.

5oz '1st Quality' Carbon / KEVLAR® Hybrid Fabric
Available in 4" and 6" Tapes


[Enlarge Photo]
Weight: 5osy
Weave: Plain
Tow Size: 3K x 1140 KEVLAR®
Thickness: .010"



[Enlarge Photo]
Unique fabric combining 3K-Carbon(Warp Direction) and KEVLAR® (Fill Direction) yarns into a plain weave fabric.

5oz Tapes 4" and 6"


4" Width
Cat No.
Description
Price
FG-CK504
4" x 5oz
7.00/running yard
Same
More than 10yds
6.30/running yard
Same
Full Roll (50yds)
5.45/running yard

6" Width
Cat No.
Description
Price
FG-CK506
6" x 5oz
9.85/running yard
Same
More than 10yds
8.95/running yard
Same
Full Roll (50yds)
8.25/running yard

(Must be cut with KEVLAR® scissors)
