Last Update: Nov 21, 2023
We try to keep the page updated with our current carbon fiber and kevlar fabrics,
so check back with us later to see whats new in our line of reinforcements

1. All of our carbon is sold as a dry woven fabric.
We do not carry any pre-pregnated material nor any fabricated sheets, panels, rods or tubing.
2. All prices shown are in US$
3. All cut yardage prices are as you see them, no extra charges.

Product Information For Purchasing
  • Minimum Order Quantity: ONE linear yard(3 Ft x width of fabric).
  • Quantity Price Breaks: Each fabric has different quantity breaks, please see below for prices
  • Packaging: Our carbon fiber fabrics always come rolled and wrapped on a cardboard or corrugated tube to reduce creases durng shipping. Narrow tapes will typically come packed in plastic bags.
  • Ordering: Online or by phone 561.588.1001

Carbon Fiber Fabrics
Fabrics from 20" to 50" Widths
 5.7oz '1st Quality' Plain Weave Carbon Fiber
5.7 oz Plain Weave Carbon Fiber

Weight: 5.7osy
Weave: Plain
Tow Size: 3K
Thickness: .010"

Standard carbon for any structural or cosmetic purpose. This style is commonly used by automobile manufacturers for their stock carbon fiber appearance. Plain weave is a one over one under pattern, checkerboard-like.
This is our 1st quality cloth that always is top quality fiber and always woven in the USA. See our
discounted carbon page for specials on other cloths.


5.7oz Plain - 50in width
- IN STOCK -

50" Width
Cat No.
Description
Price
FG-CARB5750
5.7oz x 50" Width
$39.50/ Yard
Same
2+ Yards
$34.50/ Yard
Same
5 + Yards
$32.50/ Yard
Same
10+ Yards
$30.50/ Yard
Same
20 or more Yards
$28.50/ Yard
Same
Full Roll (100yd)
Call for availability
5.7oz Twill '1st Quality' Carbon Fiber Fabric


Weight: 5.7osy
Weave: 2 x 2 Twill
Tow Size: 3K
Thickness: .010"

2x2 Twill carbon, attractive pattern. Gives 3-dimensional/diagonal appearance. More easily drapable than plain fabric, but also more delicate. Commonly used in aftermarket parts where you see the "carbon fiber look" 2x2 twill weave is a two over two under weave pattern.
This is our 1st quality cloth that always is top quality fiber and always woven in the USA. See our
discounted carbon page for specials on other cloths.


5.7oz 2x2 TWILL- 50in WIDTH
- IN STOCK -

50" Width
Cat No.
Description
Price
FG-CFT5750
5.7oz x 50" Width
$39.50/ Yard
Same
2+ Yards
$34.50/ Yard
Same
5 + Yards
$32.50/ Yard
Same
10+ Yards
$30.50/ Yard
Same
20 or more Yards
$28.50/ Yard
Same
Full Roll (100yd)
Call for availability


60" Width

5.7oz 2x2 TWILL- 60in WIDTH
- IN STOCK -
Cat No.
Description
Price
FG-93360
5.7oz x 60" Width
$46.00/ Yard
Same
2+ Yards
$43.00/ Yard
Same
5+ Yards
$41.00/ Yard
Same
10+ Yards
$39.00/ Yard
Same
20 or more Yards
$36.00/ Yard
Same
Full Roll (100yd)
Call for availability

11oz '1st Quality' 2x2 Twill Weave Carbon Fiber

[Enlarge Photo]
Weight: 11osy
Weave: 2 x 2Twill
Tow Size: 6K
Thickness: .017"

This 6K version of the 2x2 twill allows for fast buildup but still has good conformability. Used mainly as a structural reinforcement cloth but is sometimes used for cosmetic applications where a larger weave pattern is desired. (will not contour as easiliy as the 5.7oz 2x2 Twill cloth)

11oz x 50" 2x2 Twill
- IN STOCK -

50" Width

Cat No.
Description
Price
FG-CF61150
11oz x 50" Width
$44.50/ Yard
Same
5+ Yards
41.50/ Yard
Same
10+ Yards
39.50/ Yard
Same
20 or more Yards
37.50/ Yard
Same
Full Roll (100yd)
Call for availability

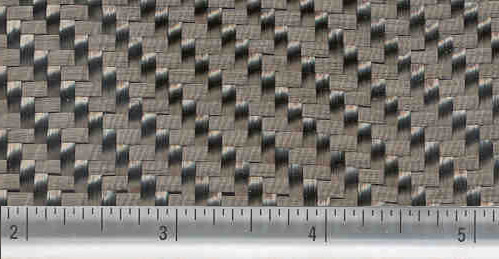

19.7oz '1st Quality' 2x2 Twill Weave Carbon Fiber

[Enlarge Photo]
Weight: 19.7osy
Weave: 2x2 Twill
Tow Size: 12K
Thickness: .030"

Heavy duty 2x2 twill weave. 12K Tow Size for fast buildup. More difficult to form than lighter weight carbon due to its high weight and thread thickness. Not generally used for cosmetic applications. Excellent for flat parts and high strength requirements.


19.7oz 2x2
- IN STOCK -

50" Width
Cat No.
Description
Price
FG-CF19750
19.7oz x 50" Width
$49.50/ Yard
Same
5+ Yards
46.50/ Yard
Same
10+ Yards
44.50/ Yard
Same
20 or more Yards
42.50/ Yard
Same
Full Roll (100yd)
Call for availability

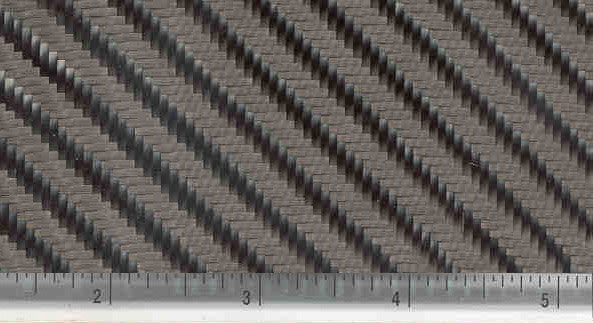

8.3oz '1st Quality' 4x4 Twill Weave Carbon Fiber

[Enlarge Photo]
Weight: 8.3osy
Weave: 4 x 4 Twill
Tow Size: 3K
Thickness: .015"

4x4 Twill. Drapes easier than comparable 8oz carbons. Fantastic diagonal pattern. Can be used structurally or for cosmetic reasons. 4x4 Twill is a four over, four under weave pattern.

8.3oz 4x4 Twill
- IN STOCK -

50" Width

Cat No.
Description
Price
FG-CF48350
8.3oz x 50" Width
$49.50/ Yard
Same
5+ Yards
45.50/ Yard
Same
10+ Yards
43.50/ Yard
Same
20 or more Yards
41.50/ Yard
Same
Full Roll (100yd)
Call for availability
 5.5oz '1st Quality' 4HS Satin Weave Carbon Fiber

[Enlarge Photo]
Weight: 5.5osy
Weave: 4 Harness Satin
Tow Size: 3K
Thickness: .009"

Very drapable fabric suitable for most cosmetic or structural applications. 4 Harness satin weave offers unique appearance.

5.5oz 4hs - 49 inch width
- IN STOCK -

49" Width
Cat No.
Description
Price
FG-CF5549
5.7oz x 49" Width
(out of stock)
Same
5+ Yards
(out of stock)
Same
10+ Yards
(out of stock)
Same
20 or more Yards
(out of stock)
Same
Full Roll (100yd)
(out of stock)


STABILIZED CARBON
6oz x 50 inch wide , 2x2 Twill Carbon Cloth
- Stabilized Fabric -

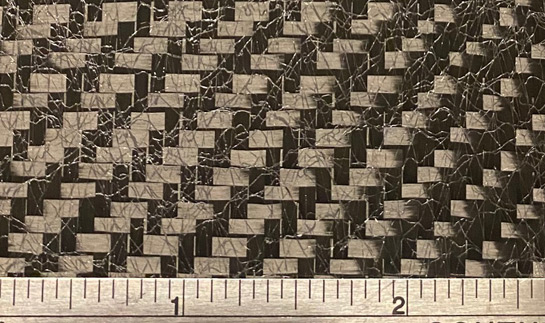

Photo of back side with veil stabilizer

[Enlarge Photo]

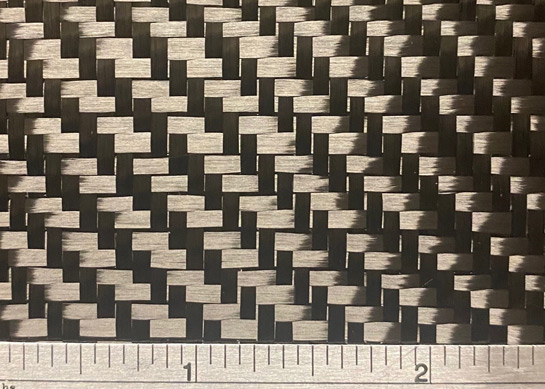

Photo of front "Cosmetic Side"
[Enlarge Photo]


Weight: 6osy
Weave: 2x2 Twill
Tow Size:3K WARP
3K FILL
Thickness: 0.011"
Thread Count 13 x 13 per inch


STABILIZED 6oz 2x2 Twill Weave
50" Width

 - In Stock-


Cat No.
Description
Price
FG-CFX6650
6oz x 50" Width
(1 to 4 yards)
$42.50/ Yard
Same
5+ Yards
$37.50/ Yard
Same
10+ Yards
$35.50/ Yard
Same
20+ Yards
$33.50/ Yard
Same
50+ Yards
$31.50/ Yard
Same
Full Roll (100yds)
Call for availability

This cloth is the popular 2x2 TWILL weave pattern that is common for many cosmetic carbon fiber parts.

This fabric contains a VEIL stabilizer on the back side which holds the weave of the cloth together when cutting complex shapes. This allows you to cut diagonal across the weave without the fibers coming apart.
Always lay this fabric with the stabilized side being the non-cosmetic side


Hybrid Fabrics
Fabrics combining both carbon fiber and KEVLAR® into one woven fabric.
Visit our New Page Exclusively Displaying our newest Carbon / KEVLAR® Hybrid Fabrics
Carbon Fiber Tapes
Fabrics with widths from 2" to 12"
Description of woven tapes: These products are referred to as tapes only due to
their narrow widths (2inch 4inch 6inch, etc.).

These products do not have any adhesive backing.

5.7oz Bi-directional Carbon Tape
Available in 2", 3", 4" , 6" and 12" widths

This bi-directional narrow cloth is a plain weave, one over, one under pattern.
This is the same fabric style as our CARB5750 but in narrow widths.
5.7 oz Plain Weave Carbon Fiber

Weight: 5.7osy
Weave: Plain
Tow Size: 3K
Thickness: .010"

5.7oz Tapes 2", 3", 4" and 6"
- IN STOCK -


2" Width
Cat No.
Description
Price
FG-CF5702
2" x 5.7oz
$5.00/running yard
Same
More than 10yds
4.50/running yard
Same
Full Roll (50yds)
3.85/running yard

3" Width
Cat No.
Description
Price
FG-CF5703
3" x 5.7oz
$6.00/running yard
Same
More than 10yds
5.40/running yard
Same
Full Roll (50yds)
4.55/running yard

4" Width
Cat No.
Description
Price
FG-CF5704
4" x 5.7oz
$7.00/running yard
Same
More than 10yds
6.30/running yard
Same
Full Roll (50yds)
5.45/running yard

6" Width
Cat No.
Description
Price
FG-CF5706
6" x 5.7oz
$9.95/running yard
Same
More than 10yds
9.25/running yard
Same
Full Roll (50yds)
8.75/running yard

12" Width
Cat No.
Description
Price
FG-CF5712
12" x 5.7oz
$12.95/running yard
Same
More than 10yds
11.65/running yard
Same
Full Roll (50yds)
10.50/running yard


>>>>>>>>>KEVLAR® Tapes Can Be Found On Our KEVLAR® Page<<<<<<<<

12.3oz Bi-Directional Carbon Tape - 12K Tow

12.3oz Carbon Fiber Tape
Weight: 12.3osy
Weave: Plain
Tow Size: 12K
Thickness: .022"

Available in the following widths
3"
4"
6"
10"
12"

This 12K tape is very heavy duty and will achieve fast build-up and provide excellent strength to your part.
Not as conformable as the 3K tape, but excellent for wrapping applications.

12.3oz x 12K Plain Weave Tape
- IN STOCK -

Cat No.
Description
Price
FG-CF123-03
3" Width
$3.50/running yard
Same
20 or more yards
$3.10/running yard
Same
Full Roll (100yds)
$2.75/running yard

Cat No.
Description
Price
FG-CF123-04
4" Width
$4.60/running yard
Same
20 or more yards
$4.05/running yard
Same
Full Roll (100yds)
$3.60/running yard

Cat No.
Description
Price
FG-CF123-06
6" Width
$6.95/running yard
Same
20 or more yards
$6.20/running yard
Same
Full Roll (100yds)
$5.50/running yard

Cat No.
Description
Price
FG-CARB12310
10" Width
$10.85/running yard
Same
20 or more yards
$9.60/running yard
Same
Full Roll (100yds)
$8.45/running yard

Cat No.
Description
Price
FG-CF123-12
12" Width
$12.60/running yard
Same
20 or more yards
$11.30/running yard
Same
Full Roll (100yds)
$9.95/running yard


Unidirectional Carbon Fabrics
Unidirection Carbon Tape
Unidirectional Carbon Tape

Weight: 11osy
Weave: Unidirectional
Tow Size: 12K
Thickness: .021"

Similar to West System tapes. Graphite running
the Warp and a Polyester fill thread securing it. Good for areas requiring carbon strength in only one direction.

Uni Tapes 11oz 1", 2", 1.5" , 3" , 4" , 6", 8",and 12"
- IN STOCK -

1" Width

Cat No.
Description
Price
FG-CFU001
1" Unidirectional
$2.75/Yard
Same
50 or More Yards
2.45/Yard
Same
Full Rolls (100yd)
2.15/Yard

1-1/2" Width

Cat No.
Description
Price
FG-CFU015
1-1/2" Unidirectional
3.20/Yard
Same
50 or More Yards
2.90/Yard
Same
Full Rolls (100yd)
2.65/Yard

2" Width

Cat No.
Description
Price
FG-CFU02
2" Unidirectional
3.75/Yard
Same
50 or More Yards
3.35/Yard
Same
Full Rolls (100yd)
3.00/Yard

3" Width
Cat No.
Description
Price
FG-CFU03
3" Unidirectional
4.40/Yard
Same
50 or More Yards
3.85/Yard
Same
Full Rolls (100yd)
3.50/Yard

4" Width
Cat No.
Description
Price
FG-CFU04
4" Unidirectional
4.95/Yard
Same
50 or More Yards
4.45/Yard
Same
Full Roll (100yd)
3.95/Yard

6" Width
Cat No.
Description
Price
FG-CFU06
6" Unidirectional
6.95/Yard
Same
50 or More Yards
6.15/Yard
Same
Full Roll (100yd)
5.25/Yard

8" Width
Cat No.
Description
Price
FG-CFU08
8" Unidirectional
8.95/Yard
Same
50 or More Yards
8.15/Yard
Same
Full Roll (100yd)
7.25/Yard

12" Width
Cat No.
Description
Price
FG-CFU12
12" Unidirectional
11.95/Yard
Same
20 or More Yards
10.95/Yard
Same
Full Roll (100yd)
9.50/Yard




For additional pricing or information contact us by phone at 1-561-588-1001
