2 Part Liquid, Expanding
Urethane Foam
Ph. 561-588-1001

Resins
Polyester Resins
Epoxy Resins
Polyester Gelcoats
Colored Pigments
Polyester Products
Ortho
Isophthalic
Vinyl Ester
Laminating Epoxy
Klear Cote
West System
White
Tooling Gelcoat
Clear
Transparent
Solid Colors
Duratec
Glazing Putties
Primers
Liquid Urethane Expanding Pour Foam
Pourable Foam in 2LB, 4LB, 8LB and 16LB densities.

Urethane Pour Foam Overview
(see product FAQ section for more information)
  • This two-part liquid, expanding rigid urethane foam is a closed cell, pourable foam, which will resist the absorption of water.
  • The densities shown refer to the weight per cubic foot of expanded foam (12" x 12" x 12").
  • Once fully cured this foam can be laminated over with any type of polyester, epoxy or vinyl ester resin without melting.
  • This product can be poured in multiple layers with excellent bonding between layers.
  • All expansion rates and times given are temperature critical. Temperatures below 75 degrees F will lower the expansion rate therefore requiring more foam. Ideal working temperature is 75 to 80 degrees F or above.
  • Accurate measuring of these products is extremely critical.
    Find our selection of measuring containers here.
  • Working time before foaming: approx. 45 seconds
  • Time before full expansion: approx. 5 minutes
  • Mixing: We recommend using a mixing paddle that fits on the end of a drill (1500 to 2000 rpm) for most consistent results and best expansion.
  • The lightweight foam is commonly used for filling voids, filling under decks and practically any other flotation or insulation application. Higher densities are used for architectural castings, support applications and has virtually an unlimited number of potential uses.
  • Shelf Life: When purchasing the foams you should plan to only purchase what can be used in 3 months for best performance. In air-tight containers the liquids can last longer, but should be tested in a small amount before use.

Polyurethane Foam Information (FAQ)

CLICK HERE for answers to some of the most frequently asked questions.

Kit Sizes
Kits are sold by weight size packaging.
Here is how they compare to volume
4LB Kit = Approx 1.7 quarts
16LB Kit = Approx 1.8 gallons
80LB Kit = Approx 9 gallons

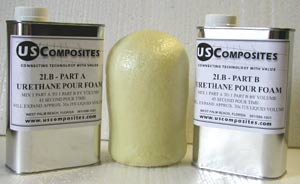

2 LB Density Urethane Foam
(U.S. Coast Guard Compliant Marine Foam)

Common Applications: Our 2LB density marine foam is recommended for void filling in nonstructural applications. This product can be poured underneath decks and inside cavities where a lightweight flotation foam is needed to provide buoyancy. This foam has been tested in accordance with U.S. Coast Guard Regulation # 33 CFR 183.114 . This foam is approximately 95-98% closed cell which resists absorbing water, however continuous water submersion can eventually lead to loss of buoyancy over a period of years.

** We recommend the 2LB FOAM strictly for flotation applications. If looking for a liquid foam for sculpting or casting we recommend using at minimum our 3LB or 4LB density.**

More questions?
[Try our Foam FAQ.]

2LB FOAM - 01/05/2024
IN STOCK


Cat No.
Kit Size(net weight)
Approx. Coverage
Price
FOAM-0204
4 LB Kit
2 Cubic Feet
$26.50
FOAM-0216
16 LB Kit
8 Cubic Feet
$77.50
FOAM-0280
80 LB Kit
40 Cubic Feet
$314.00
5 or more kits of the FOAM-0280
$302.00 / Kit
Drum Pricing (Kit Size 947 LBS)
Coverage: approx. 470 cubic feet
Call for current price

Product Information:
Free Rise Density: 2.0 lbs per cubic ft.
Expansion Rate: Approx. 25-30x Liquid Volume
Buoyancy (flotation): 60 LBs per Cubic Ft.

*Physical Properties:
Parallel Compressive Strength: 40 psi
Tensile Strength: 30 psi
Shear Strength: 30 psi
Flexural Strength: 50 psi


3 LB Density Urethane Foam

Common Applications: Can be used as a lightweight foam for carving or sculpting as well as some limited casting applications Gives better detail than our 2LB density foam. The 4LB density should be used for better quality castings and improved strength. More questions? [Try our Foam FAQ.]

Cat No.
Kit Size(net weight)
Approx. Coverage
Price
FOAM-0304
4 LB Kit
1-1/3 Cubic Foot
$26.00
FOAM-0316
16 LB Kit
5 Cubic Feet
$75.50
FOAM-0380
80 LB Kit
26 Cubic Feet
$306.00
5 or more kits of the FOAM-0380
$294.00 / Kit
Drum Pricing (Kit Size 1000 LBS)
Coverage: approx. 330 cubic feet
Call for current price

Product Information:
Free Rise Density: 3.0 lbs per cubic ft.
Expansion Rate: Approx. 20x Liquid Volume
Buoyancy (flotation): 59 LBs per Cubic Ft.

*Physical Properties:
Parallel Compressive Strength: 60 psi
Tensile Strength: 70 psi
Shear Strength: 50 psi
Flexural Strength: 70 psi

4 LB Density Urethane Foam

Common Applications: This 4LB density foam is suited well for most flotation applications that require more support than the 2LB offers. This foam is recommended to be used when supporting gas tanks and some deck areas. Choose this density if you feel that the foam will be required to withstand minor to moderate loads. The 4LB density also works well in floating decoy or taxidermy applications as well as many other sculpting, casting, carving and other filling applications. More questions? [Try our Foam FAQ.]

Cat No.
Kit Size(net weight)
Approx. Coverage
Price
FOAM-0404
4 LB Kit
1 Cubic Foot
$26.00
FOAM-0416
16 LB Kit
4 Cubic Feet
$75.50
FOAM-0480
80 LB Kit
20 Cubic Feet
$306.00
5 or more kits of the FOAM-0480
$294.00 / Kit
Drum Pricing (Kit Size 1000 LBS)
Coverage: approx. 250 cubic feet
Call for current price

Product Information:
Free Rise Density: 4.0 lbs per cubic ft.
Expansion Rate: Approx. 15x Liquid Volume
Buoyancy (flotation): 58 LBs per Cubic Ft.

*Physical Properties:
Parallel Compressive Strength: 90 psi
Tensile Strength: 110 psi
Shear Strength: 70 psi
Flexural Strength: 120 psi

8 LB Density Urethane Foam

Common Applications: This 8LB density foam is extremely hard and rigid, like that of a soft wood. Your fingernail can penetrate its skin, however it cannot be dented by hand. Uses include casting, carving, sculpting, sign making as well as areas where an extremely durable and rigid foam is needed for support. More questions? [Try our Foam FAQ.]

Cat No.
Kit Size(net weight)
Approx. Coverage
Price
FOAM-0804
4 LB Kit
1/2 Cubic Foot
$26.00
FOAM-0816
16 LB Kit
2 Cubic Feet
$75.50
FOAM-0880
80 LB Kit
10 Cubic Feet
$306.00
5 or more kits of the FOAM-0880
$294.00 / Kit
Drum Pricing (Kit Size 1000 LBS)
Coverage: approx. 125 cubic feet
Call for current price

Product Information:
Free Rise Density: 8.0 lbs per cubic ft.
Expansion Rate: Approx. 8x Liquid Volume
Buoyancy (flotation): 54 LBs per Cubic Ft.

*Physical Properties:
Parallel Compressive Strength: 250 psi
Tensile Strength: 225 psi
Shear Strength: 130 psi
Flexural Strength: 350 psi

16 LB Density Urethane Foam

Common Applications: This 16LB density foam is essentially as hard as a rock, you would need a hammer in order to make any dents in this product. Can be used for sculpting or the casting of objects that require superior toughness and strength. More questions? [Try our Foam FAQ.]

Cat No.
Kit Size(net weight)
Approx. Coverage
Price
FOAM-1604
4 LB Kit
1/4 Cubic Foot
$26.00
FOAM-1616
16 LB Kit
1 Cubic Feet
$75.50
FOAM-1680
80 LB Kit
5 Cubic Feet
$306.00
5 or more kits of the FOAM-1680
$294.00 / Kit
Drum Pricing (Kit Size 1000 LBS)
Coverage: approx. 60 cubic feet
Call for current price

Product Information:
Free Rise Density: 16.0 lbs per cubic ft.
Expansion Rate: Approx. 4x Liquid Volume
Buoyancy (flotation): 46 LBs per Cubic Ft.

*Physical Properties:
Parallel Compressive Strength: 580 psi
Tensile Strength: 450 psi
Shear Strength: 230 psi
Flexural Strength: 750 psi

*All physical properties shown above represent typical values and will vary based on your application and method of use.
